HMI Visualization with the Unified-E App Designer
The HMI app is individually configured in the HMI editor Unified-E App Designer—layouts can be set up in a fluid design for smaller devices like smartphones. Value inputs can be made on the smartphone using various elements such as input fields, buttons, or even by scanning a QR code. To run the configured HMI app on your smartphone, simply install the Unified-E Client from the store and register the configured HMI app.

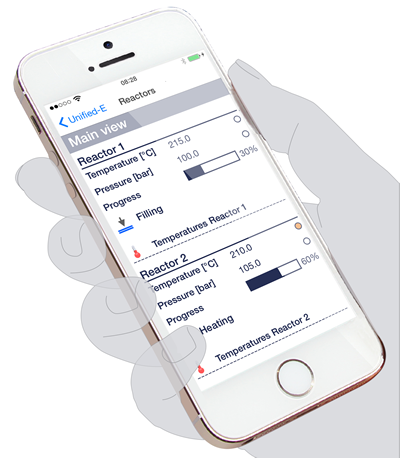

Machine operation with an HMI app on a smartphone - using an Android HMI or iPhone HMI.
Smartphone HMI for Calibration or as a Reader
Unified-E is ideal for HMI applications such as machine calibration or communication with energy controllers, where a fast and reliable connection to the PLC within the same network is required. The smartphone HMI communicates directly using established PLC protocols, eliminating the need for an additional server.
Manage Multiple HMI Apps in the Unified-E Client App
The Unified-E Client can register multiple HMI apps (HMI visualizations), allowing different machines or controllers to be operated through a single app on the smartphone. This means a single smartphone or tablet could replace multiple operator stations for different machines!
Integrated Communication Drivers for PLCs and IT Endpoints
The following communication drivers are already integrated into the Unified-E Client App for Android and iPhone devices:
- OPC UA: Enables easy integration with various controllers, including B&R, WAGO, and Codesys-based controllers.
- Modbus: Supports numerous endpoints in industrial automation.
- Siemens: Compatible with all common S7 controllers, including S7-200 Smart and Logo controllers.
- Allen Bradley: Supports Micro800, CompactLogix, and ControlLogix controllers via Ethernet/IP.
Fixed-Price License per Mobile Device
The configuration of the HMI app for machine operation using direct communication is easily done via the Unified-E App Designer HMI editor, which is available for free in the download section.
The HMI app registered on the smartphone is fully functional without a license for 48 hours, making it free for testing and development purposes. To use it again, the HMI app must be re-registered.
For continuous operation, a Direct License is required. This hardware-bound fixed-price license is linked to the mobile device and remains valid throughout the device’s lifespan. A one-time transfer to a new device is possible; after that, the license is bound to the new device's lifespan.
During the license period, you receive unlimited update support for the HMI software. This ensures continuous improvements, new features, and compatibility of the Unified-E Client even after an operating system update.
Are you interested in remote monitoring via the internet in addition to smartphone-based machine operation? Then the Remote Monitoring with Smartphone application supported by Unified-E may be the perfect solution for you!
Why Choose Unified-E HMI Software for an iPhone or Android HMI?
- Direct PLC Communication – Supports Modbus, OPC UA, S7 & Allen-Bradley control protocols
- No Web Server or External PC Required – Simple & direct connection
- Calibration & Energy Controller Communication – Seamlessly integrated
- HMI Development with Unified-E App Designer – Intuitive & no programming required
- Multiple HMI Visualizations – Operate with the Unified-E Client on an Android or iOS device
- Fixed-Price Hardware-Bound License – Includes unlimited update support
Typical Applications
- Mechanical Engineering – On-Site Machine Operation – Control production machines directly via smartphone
- Laboratory Automation – Mobile Control – Operate and monitor lab equipment flexibly via smartphone
- PLC Control – Operate Systems via App – Direct PLC communication without a web server or PC
- Maintenance & Servicing – Diagnostics via Smartphone – Check machine statuses & read out errors
- Calibration – Adjust Machines & Sensors – Modify setpoints directly via smartphone
- Read Operating States – Retrieve Live Data – View status values & error messages on the go
